Home page = http://www.t-grips.com

THIS FORM LAST UPDATED:  10/04/2018

Back to Trigger Shoe Order Form

Tyler MFG

PO BOX 492

NEWALLA, OK 74857


Flat Black Finish Aluminum = $29.00

Flat Black Size #11 HVR = $33.00

Bronze Trigger Shoe = $37.00

Shipping =  $8.75 Total

SMITH & WESSON PISTOLS/REVOLVERS TRIGGER SHOE Size # NOTES
M&P, Combat, K22, K32, K38, Masterpiece, 38/44, 44 Spec.,
357, Patrolman, Outdoorsman, D.A. Army, 44 Target,
41 & 44 Magnum, Most "K" & "N" Frame Revolvers (Trigger = approx 1/4" wide)
#1
S&W New Smooth Trigger "K" "L" 686 "N" Frame (Trigger = 5/16" wide) #17

Older Model J-Frames with grooved trigger face, usually pre 1970: Chief, Terrier, Hand Ejector, Kitgun, Bodyguard, Regulation
Police, Centennial, Airweight, (all "J" Frame w/ narrow trigger = 1/4")

#14
S&W Wide Smooth Trigger "J" Frame, Rossie smooth trigger (Trigger = approx 5/16" or less) #217

Taurus 85 Ultra-Lite 38sp Rev, 941 Rev 22 Mag

Rossi wide smooth trigger, RWS Airgun, Ruger 101

#217
S&W Model 61 Automatic (narrow trigger less than 3/16") #20 discontinued item; only available in old stock type, silver, black, and gold anodized aluminum. UNIT PRICE= $25.00 per item
S&W Hiway Patrolman (some models), 1917 (Trigger = slightly wider than 1/4") #21

discontinued item; only available in old stock type, silver, black, and gold anodized aluminum. UNIT PRICE= $25.00 per item

S&W Automatics: 39, 41, 42, 59, 639, 659, 52

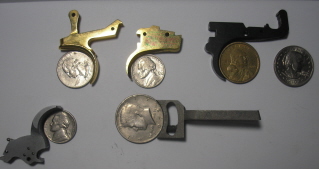

(Trigger width = 5/16"; curve = U.S. Quarter)

#159



REMINGTON SHOTGUNS & RIFLES TRIGGER SHOE Size # NOTES

510, 511, 512, 513, 514, 512X, k 540, 541, 550, 572, 513T, 740, 760, 1100, 58 Auto, 870, 552, 1187, 700, 7400, 7600, 552, 742

(Trigger = 3/16" wide; curve = U.S. Quarter)

#9

 HEAVY DUTY BRONZE TRIGGER SHOE

UNIT PRICE= $37.00

31, 121, 581, 788, 11, 11-48 (Trigger = approx 1/4" wide; curve = U.S. Nickel) #6

Shilen and Jewell Replacement Triggers 700 Rem

(Trigger = less than 3/16" wide; curve = U.S. Quarter approx)

#11 HVR Because this replacement trigger is so narrow, this trigger shoe has 4 set screws installed, two on each side. UNIT PRICE = $33.00

Marlin 81-T .22

(Trigger = less than 3/16" wide; curve = U.S. Quarter approx)

#111
600 (Trigger Measurements: width = 24/64 or 0.375"; curve = U.S. Quarter) #15
700 (Trigger = 5/16" wide; curve = U.S. Quarter approx) #23



MISCELLANEOUS SHOTGUNS & RIFLES TRIGGER SHOE Size # NOTES

Weatherby Triggers: Vanguard, and some other models with the following measurements

(Trigger Measurement: width = 1/4" wide; curve = slightly less than U.S. Quarter)

#2

Ruger Mini 14, Ruger M77, Marlin bolt action Rimfire by Rifle Basix Aftermarket Trigger

(Trigger Measurement: width = 1/4" wide; curve = slightly more than U.S. Quarter)

#4

Browning Auto Shotguns

(Trigger Measurement : width = approx 1/4"; curve = U.S. Nickel)

#6

Savage 23D, Sako L57, Marlin 222, 80, Springfield 951,
Mossberg 185, 283, Krag, Franchi Auto, Ithaca 400, Stevens 59,
Higgens 25, S&W 1000, H&K Benelli S-90, S&W 1000

Sharp Shooter, Rifle Basix, Savage Model 10

(Trigger Measurement: width = 3/16"; curve = U.S. Quarter; length = < 1")

#9

Stevens 416, Walnut Hill, 54A, FN400, Sako LA6, Springfield 03, 03A3,
Wards 46A, Mossberg 151, 152K, 640, M-1Garand, Timney Target,
Thompson, New Englander Muzzle Loader, Armalite AR-50

(Trigger Measurement: width = 3/16" or less; curve = U.S. Quarter; length = 1" approx)

#11
M-1A, M-14 #11

Browning Fn, Mauser 91, 93, 98, Mannlicker Shoen
Savage 23, Sako Finnfire 461

(Trigger Measurement: width = slightly < 1/4"; curve = U.S. JFK 1/2 Dollar)

#12
Browning A Bolt (Trigger Measurements: width = 24/64 or 0.375"; curve = U.S. Quarter) #15
Ruger 10/22 (Trigger Measurements: width = slightly more than 5/16"; curve = U.S. Quarter is close) #159
SKB 500 Series O & U, SKB 85 #13

Ruger Model 1, Model 2, Ruger O&U (9/32"wide), Colt AR-15

(Trigger Measurements: width = 9/32"; curve = close to U.S. Nickel)

#17
Some Timney Replacement Triggers (Trigger Measurements: width = 1/4" wide; curve = U.S. Dime to Nickel) #14
Howa 1500 Series Rifle (Trigger Measurements: width = slightly more than 1/4"; curve = U.S. Quarter is close) #22
Marlin 881, 882, 883, 25N, 25MN, Shilen (Trigger Measurements: width = 1/8", curve = straight) #24 discontinued item; only available in old stock type, silver, black, and gold anodized aluminum. UNIT PRICE = $25.00 per item

SAKO Model75, Benelli Sport 2NM, Super Black Eagle, Montefeltra,

Charles Daily Superior Field MM 12ga

#3
Tikka Hunter, cal .22 Long Riffle, circa 2003 #3
Rock River N.M. Trigger Group for AR-15 National Match #19-L
AK-47 #17

New England Firearms Handi Rifle SB2, Semi Auto Model 9-10

(Trigger width = approx 5/16" or less; curve = close to U.S. Dime and up to a U.S. Nickel contour)

#217

Thunder 380 Bersa SA

(Trigger Measurements: 5/16" width; U.S. Nickel curve)

#23

Benelli Nova 12 ga Pump

(Trigger Measurements: width = 5/16"; curve = less than U.S. Quarter contour)

#17
CZ 550 .243 cal and up (single set trigger) circa 2004 #13


COLT PISTOLS & REVOLVERS TRIGGER SHOE Size # NOTES

45, 38 Super, Commander (late model) (all caliber) 25 Automatic
(old model), Springfield 45, Mustang, COLT 1911

(Trigger Measurement: width = approximately 3/16" or MOL; curve = more than U.S. Quarter, close to J.F.K. $1 coin curve)

#3
Cobra, Detective Special, Bankers Special, Agent, Courier Police,
Positive Special, Diamondback, Viper
#10



S.A. Frontier, S.A. Army (all Caliber), 22 Scout,
22 New Frontier, 22 Peacemaker
#24

discontinued, old stock available---Only--All Sales Final

Unit Price = $25.00

Double Eagle

(Trigger Measurements: width = slightly more than 5/16"; curve = U.S. Quarter is close)

#159



WINCHESTER SHOTGUNS & RIFLES TRIGGER SHOE Size # NOTES
43, 69, 75, 88, 100 Carbine, 54, 70 (old model, pre 1964), 72A #2
70 (late model post 1964), 600 #23
2002 Model 70 Bolt Action Center Fire Classic Featherweight #159
12, 21, 50, 61, 63, 150, 250, Hi & Lo Wall #6
670, 770 #15
Model 67-A .22 Cal. #4


MISCELLANEOUS PISTOLS, REVOLVERS, AIR GUNS TRIGGER SHOE Size # NOTES
Browning 9 mm Hi Power #6
Astra Cub, Titan, Galesi Automatic, Ruger Single Six & Blackhawk
(narrow trigger, older model, all caliber), Old Army Cap & Ball,
Rohm RG 66, Jennings, Sheridan Air pistol
#9
Ruger Standard MK 1 & MK II, Walther P38, Taurus 92 #15

Ruger Security Six, Speed Six, Redhawk, Super Redhawk, GP-100
#17

Ruger (late model) Single Six, Blackhawk all cal. wide trigger Super
Blackhawk 44 Mag, Virginia Dragoon, A.M.T. Hardbvall
#19-S
Harrington Richardson 662, 732, 900, 939, 949, 999, 925, 929, TZ85 #23
Walther PPK, PPKS #159
Beeman R Series Rifles #12
Air Arms TX200, ProSport, 400 & 410 Series #3
Webley Raider #12
